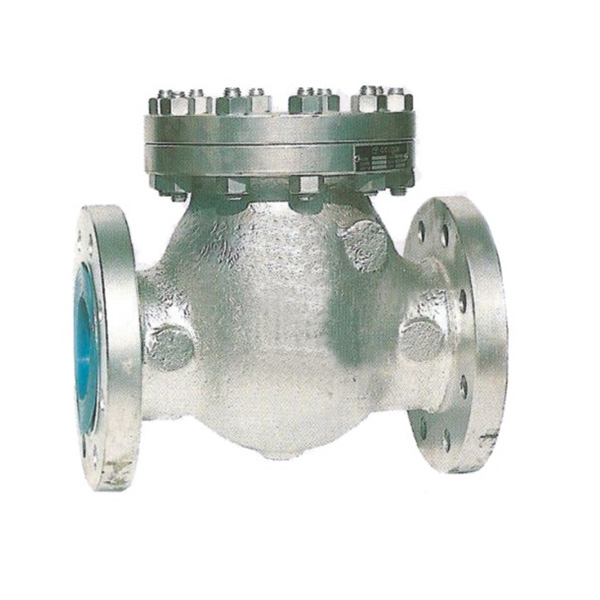

CHECK VALVE (CLASS 125)
PROPERTIES
Swing Check Valve
Class 125
API 6D
ANSI B16.10
ANSI B16.1 Flange
Flanged (FLGD)
Flat Face (FF)
Bolted Bonned (BB)
Renewable seat ring
Full Port
| NO | PART NAME | MATERIAL |
| 1 | Body | Cast Iron A 126 Gr. B |
| 2 | Body seal | Cast Brass B62 |
| 3 | Disc | Carbon Steel |
| 4 | Disc Hinge | Carbon Steel |
| 5 | Stem | Stainles Steel A182 Gr. F6 |
| 6 | Gasket | Compressed Asbestos(CAF) |
| 7 | Bonned | Fabricated Steel A515 |
| 8 | Stud | Steel A 307 Gr.B |
| 9 | Nut | Steel A 307 Gr.B |
| Nominal Pressure | PN | CLASS 125 | |||||||||||||
| Nominal Diameter | ÖN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| Valve Dimensions ANSI B16.10 |
L | 203 | 216 | 241 | 292 | 330 | 355.6 | 495 | 622 | 698.5 | 787 | 864 | 978 | 978 | 1295 |
| H | 145 | 180 | 196 | 215 | 240 | 258 | 325 | 360 | 379 | 435 | 468 | 530 | 605 | 665 | |
| Flange Dimensions ANSI B16.1 CLASS 125 |
D | 152.5 | 178 | 190.5 | 228 | 254 | 279.5 | 343 | 406.5 | 483 | 533.5 | 597 | 635 | 698.5 | 813 |
| k | 120.7 | 139.7 | 152.4 | 190.5 | 216 | 241.3 | 298.5 | 362 | 431.8 | 476.5 | 537.8 | 577.9 | 635 | 749.3 | |
| Ö | 16 | 17.5 | 19 | 24 | 25.5 | 28.5 | 30.2 | 32 | 35 | 36.5 | 40 | 43 | 48 | ||
| Ølxn | Ø19x4 | Ø19x8 | Ø22x8 | Ø25.5x12 | Ø28.5x12 | Ø28.5x16 | Ø32x16 | Ø32x20 | Ø35x20 | ||||||
| Weight | kg | 18 | 25 | 30 | 51 | 55 | 80 | 145 | 290 | 360 | 435 | 570 | - | 910 | - |
